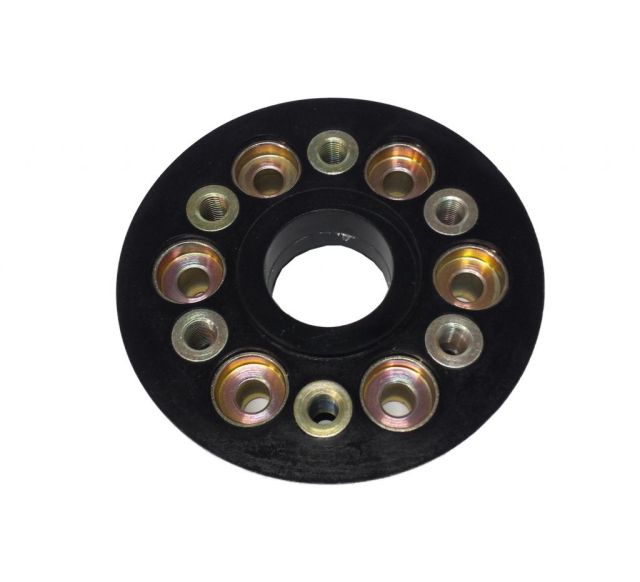

Gearbox Coupling IFC-6000-95
Isoflex Model: IFC-6000-95 Product Type: 6 Stud Coupling | Downloads IFC-6000-95 Data Sheet |
IFC-6000-95 Specifications
| Feature | Metric | Imperial |
|---|---|---|
| Gearbox Flange Bolt Circle Diameter | 98.43 [3 7/8"] | 3 7/8 |
| Gearbox Flange Bolt Size | 7/16" UNF | 7/16" UNF |
| Gearbox Flange Index Ring Type | M | M |
| Gearbox Flange Index Ring Diameter | 63.5 [2 1/2"] | 2 1/2 |
| Isoflex Coupling Outside Diameter | 150 | 5.91 |
| Isoflex Coupling Inside Diameter | 50 | 1.97 |
| Isoflex Coupling Thickness | 32 | 1 1/4 |
| Heavy Duty | 925 | 680 |
| Medium Duty | 1375 | 1010 |
| Pleasure Craft | 1575 | 1160 |
| Approx Weight incl. Bolt Set | 1.6 | 3.5 |
